Milk Processing Machines

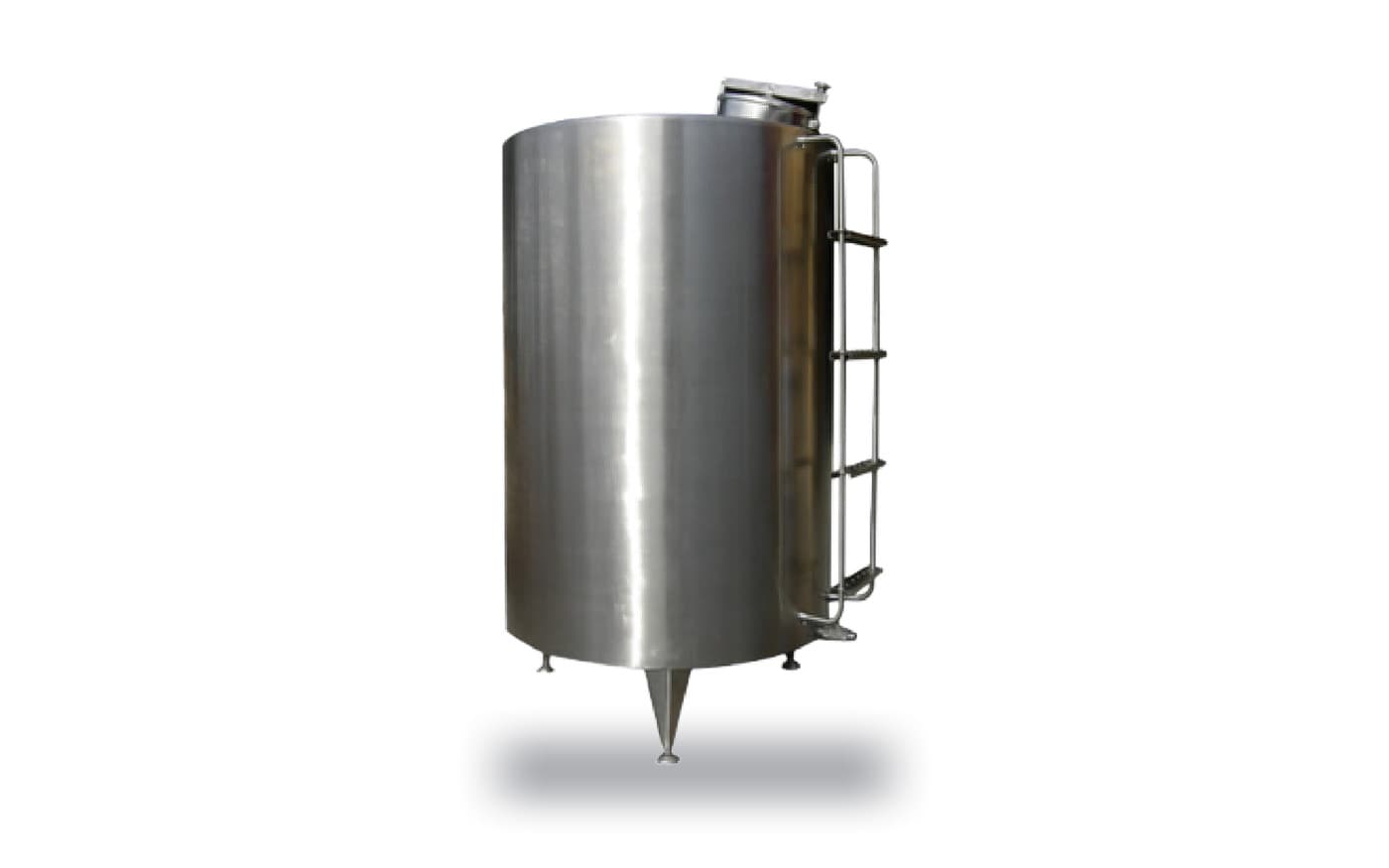

Milk Storage Tank
Vertical stainless steel storage tank for in-plant intermediate stock and process feeding. Capacity range 1,000–25,000 L.
About This Product
Cooled milk is held in the storage tank for regulated feeding to the processing line. Proper tank volume selection ensures uninterrupted line operation and absorption of supply fluctuations. The product outlet features a DN50 butterfly valve, and the top is fitted with a spring-loaded manhole cover. Adjustable bolted feet at the bottom enable field adjustment of the slope required for complete tank drainage.
Features
- 1,000–25,000 L wide capacity range
- DN50 butterfly valve outlet
- Adjustable feet for complete discharge
- CIP washing connection
- Spring-loaded manhole cover
Technical Specifications
- Material
- Stainless AISI 304
- Capacity
- 1,000–25,000 L
- Product Outlet
- DN50 butterfly valve
- Cover
- Spring-loaded manhole cover
- Feet
- Adjustable bolted feet at bottom
- Cleaning
- CIP washing connection
Technical values are for information only and may change as products are developed. Binding values are stated in the order confirmation.
